MOD. 4003-J

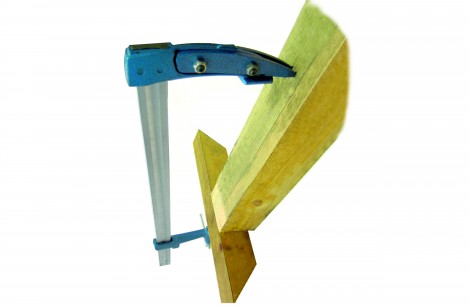

Carpenter´s Clamp, Specially adapted to Carpenters and Joiners.

  1. Nodular Cast Iron Jaws with a Double Peak allowing a perfect anchorage with a hammer.
  2. Bar attachment to the Jaw by a Rivet Free System. PATENTED.
  3. Trappezoidal Thread Totally Sealed and Permanently Lubrified.
  4. Ergonomic pommel and cross iron handle
  5. Ball Bearings Mechanism No friction at aall.
  6. High restistance steel bar
  7. Hardened Steel Brake. Braking System of Total Warranty.
  8. Swivel pad including a hardened point.



Separador
urko

Bar 35 x 8 mm.

Depth: a = 107 mm.
Depth: c = 129 mm.
Opening: b = 60 - 150 cm.



Separador
urko

Applications

  • Powerful Clamping with less Effort
  • Dusty enviroments or under Fluids.
  • En el Exterior, en Situaciones Adversas, Humedad, Ambiente salino, etc.
  • Outdoor enciroment, Humid or Salted.
  • High precision clamping.

Outstanding benefits:

  • Ball Bearings Mechanism. No friction at all
  • seled Mechanism and permanent lubrification.
  • Protection against punching, Welding Projections, Dust, Oxydation.



RESULT: the Lifetime of the product is improved between 10 and 15 times



                           CLAMPING FORCE
Performance=                                     = 40 TO 80 % HIGHER
                           MANUAL EFORT
